CodeAlpha_JenkinsRemotingProject

CodeAlpha DevOps Internship — Task 2: Jenkins Remoting Project

Sets up a Jenkins controller and a separate remote agent node, connected via Jenkins Remoting over SSH, and runs a pipeline job that executes on the remote node — proving distributed builds, node isolation, and secure remote execution.

Project structure

CodeAlpha_JenkinsRemotingProject/
├── docker-compose.yml         # controller + agent containers
├── Jenkinsfile                 # pipeline that targets the remote node
├── Jenkinsfile.multi-node      # bonus: 2 nodes, different labels
└── README.md

Prerequisites

• Docker + Docker Compose installed
• An SSH keypair (you’ll generate one below)

Step 1 — Generate an SSH keypair for the agent

ssh-keygen -t rsa -b 4096 -f jenkins_agent_key -N ""

This creates jenkins_agent_key (private) and jenkins_agent_key.pub (public).

Open docker-compose.yml and replace REPLACE_WITH_YOUR_PUBLIC_KEY with the contents of jenkins_agent_key.pub.

Step 2 — Start the controller and agent containers

docker compose up -d
docker compose ps

Get the initial admin password for Jenkins:

docker exec jenkins-controller cat /var/jenkins_home/secrets/initialAdminPassword

Open http://localhost:8080, paste the password, install the suggested plugins, and create your admin user.

Step 3 — Add SSH credentials in Jenkins

1. Manage Jenkins → Credentials → System → Global credentials → Add Credentials
2. Kind: SSH Username with private key
3. Username: jenkins
4. Private key: paste the contents of jenkins_agent_key (the private key file)
5. ID: remote-agent-ssh-key

Step 4 — Register the remote node

Manage Jenkins → Nodes → New Node

Field	Value
Node name	remote-node-1
Type	Permanent Agent
Remote root directory	/home/jenkins/agent
Labels	linux-remote
Launch method	Launch agents via SSH
Host	jenkins-agent (container name — resolvable on the shared Docker network)
Credentials	select remote-agent-ssh-key from Step 3
Host Key Verification Strategy	Non verifying (fine for this local lab setup)

Save. Jenkins will SSH into jenkins-agent and launch the remoting connection. Check Manage Jenkins → Nodes — remote-node-1 should show as online (green).

Step 5 — Enforce node isolation (security hardening)

By default Jenkins can run jobs directly on the controller, which is a security risk. To force ALL jobs onto agent nodes:

1. Manage Jenkins → Nodes → built-in node (master)
2. Configure → set Number of executors to 0

Now the controller only orchestrates; it can never execute untrusted build steps directly — a core DevOps/security best practice for Jenkins.

Step 6 — Create the pipeline job

1. New Item → Pipeline, name it remote-node-demo
2. Under Pipeline, choose Pipeline script from SCM if using GitHub (point it at this repo and Jenkinsfile), or paste the contents of Jenkinsfile directly under Pipeline script for a quick local test.
3. Build Now

Step 7 — Confirm it ran on the remote node

Open the build’s Console Output. You should see:

• hostname → remote-node-1 (not the controller’s hostname)
• whoami → jenkins
• The archived artifact build_output/result.txt

This is your proof the job executed remotely, not on the controller.

Bonus: second agent (for Jenkinsfile.multi-node)

To demonstrate distributing different stages to different machines:

1. Repeat Step 4 to register a second agent (you can reuse the same jenkins-agent container with a different label for a quick demo, or spin up a second container from docker-compose.yml copy-pasted with a new service name).
2. Label it java-build.
3. Run the Jenkinsfile.multi-node pipeline and observe each stage’s console output showing a different NODE_NAME.

Troubleshooting

Symptom	Fix
Agent shows offline	Check docker logs jenkins-agent; confirm the public key in docker-compose.yml matches your keypair
SSH connection refused	Confirm both containers are on the jenkins-net network: docker network inspect jenkins_jenkins-net
Job runs on controller instead of agent	Confirm agent { label 'linux-remote' } matches the exact label set on the node, and controller executors = 0
“Host key verification failed”	Set Host Key Verification Strategy to “Non verifying” for this lab setup

What this demonstrates (DevOps concepts)

• Jenkins controller/agent (remoting) architecture
• Secure remote execution over SSH
• Distributing build load across machines via node labels
• Node isolation as a security hardening practice
• Multi-stage pipelines spanning multiple remote nodes

## Setup & Verification

Bring up the stack

```bash docker-compose up -d ``` This starts two containers: jenkins-controller and jenkins-agent, connected over the jenkins-net bridge network.

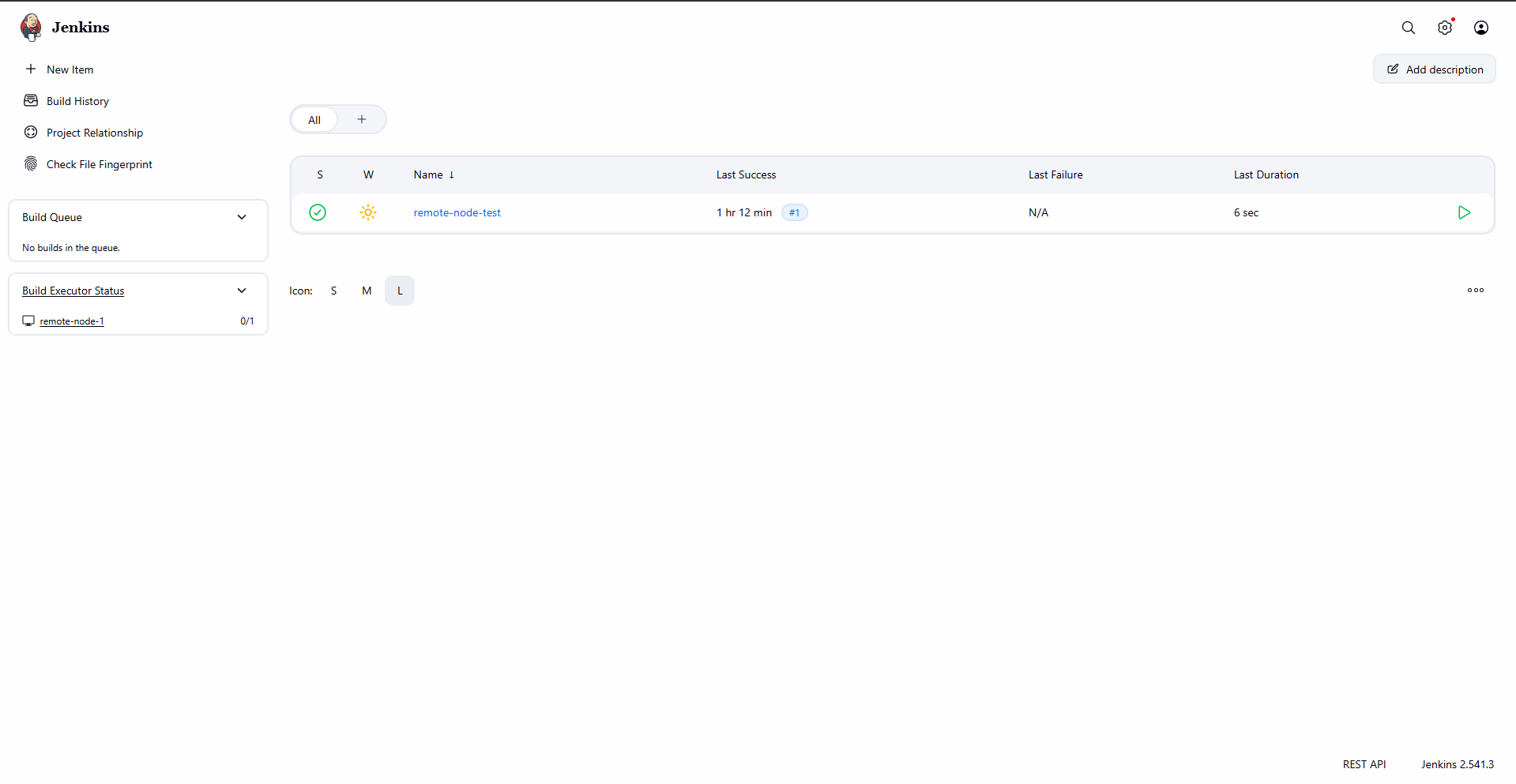

1. Remote agent connects successfully

The agent node remote-node-1 registers with the controller and shows as online, in sync, with a healthy response time.

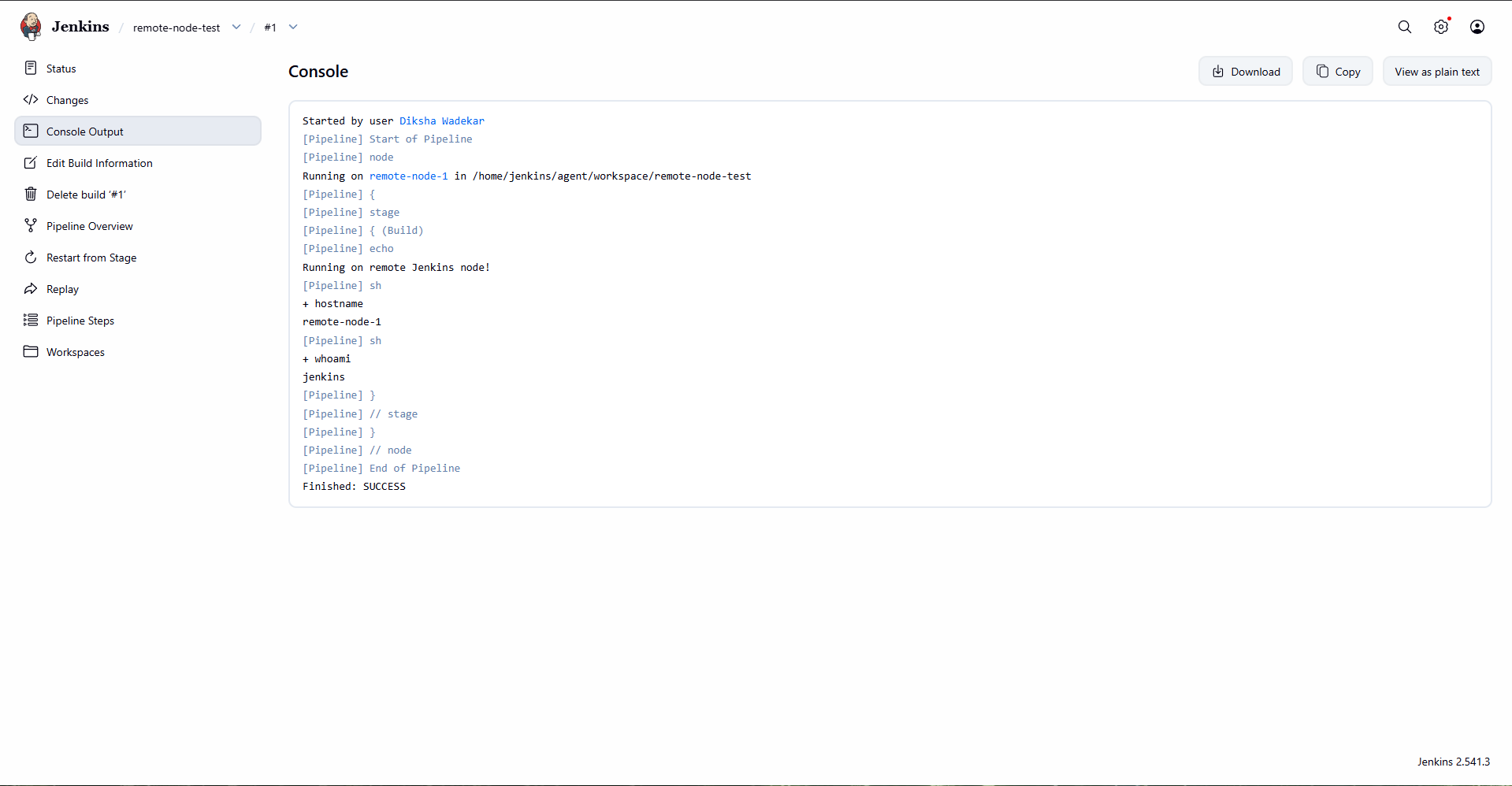

2. Pipeline executes on the remote node

Running the remote-node-test pipeline confirms the build is dispatched to remote-node-1 — not the controller. The hostname and whoami steps in the console output verify this directly.

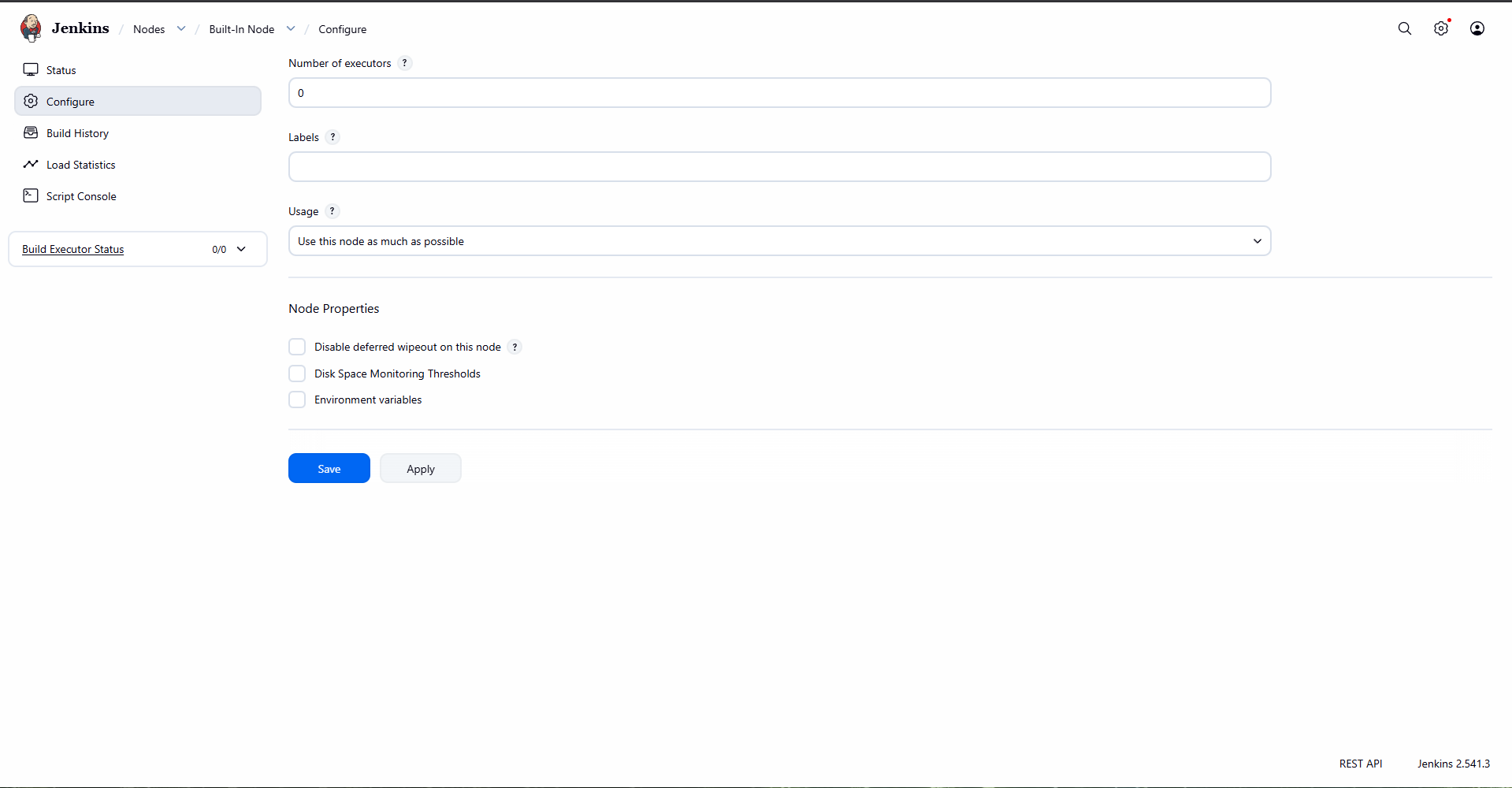

3. Node isolation on the controller

The Built-In Node (controller) is configured with 0 executors, so it is physically incapable of running any build itself. Every job is forced onto the labeled remote agent — a real-world security/scalability best practice.

Result

All builds are distributed to the remote SSH agent, with the controller dedicated purely to orchestration.
